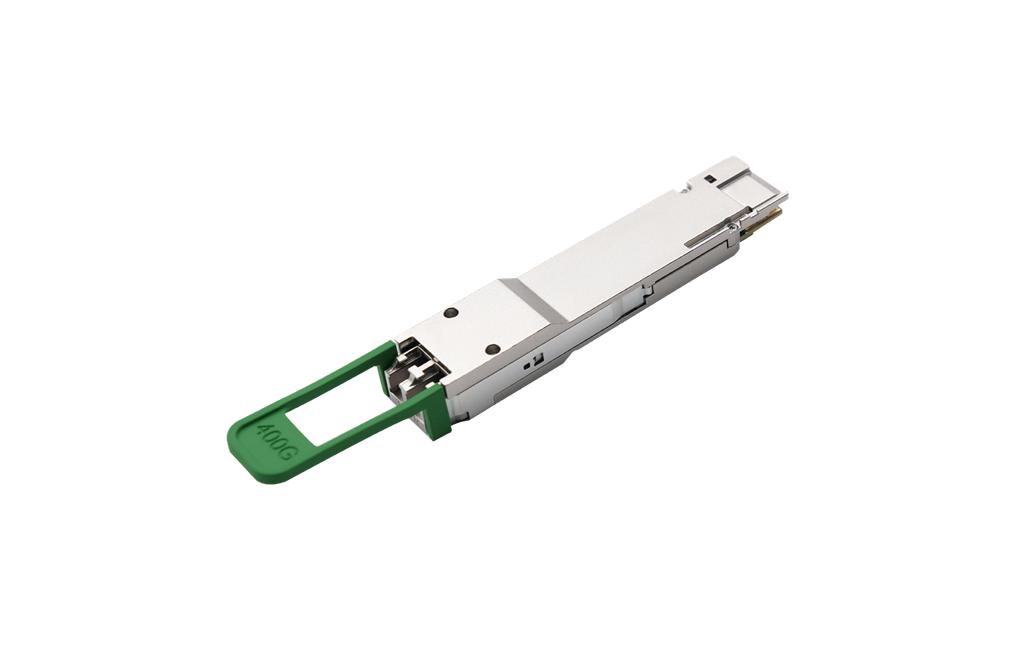

QSFP-DD 400GBase-FR4 2km | C-Temp
QSFP-DD, FR4 , 2 km, Ethernet, 400GBE, SM, LAN-WDM(4x), 0-70°C, LC, pull-tab, DDM
| Data rate: 400G |
| Form Factor: QSFP-DD |
| Transceivers: FR4 |
| Reach (km): 2 |
| Media: SMF |
| Temperature (C°): 0 to 70 |
| Power Consumption (W): 12 |
| Interface: LC |
| Rx Input (dBm): -4.6 |
| Tx Output (dBm): -0.2 to +3.7 |
Features
QSFP-DD MSA Compliant
802.3cu compliant
QSFDD CMIS4.0 management interface compliant
4 CWDM lanes MUX/DEMUX design
RoHS 2 Compliant
100G Lambda MSA compliant
Non-hermetic package design
8 x 53.125 Gbps PAM4 electrical interface (400GAUI-8)
