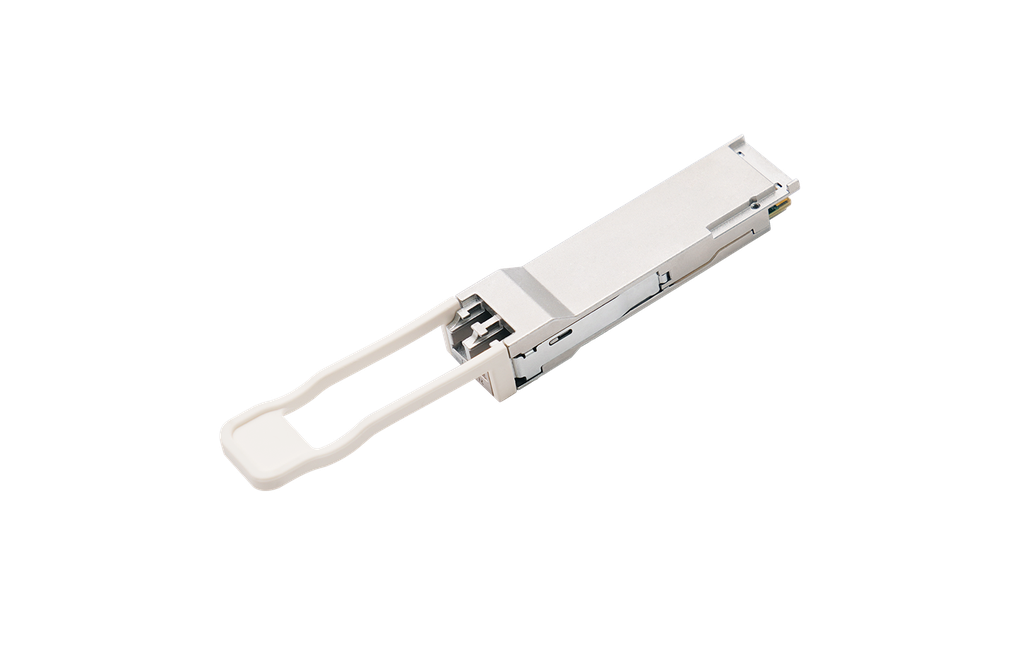

QSFP28, 100GBase-ZR4 80 km | C-Temp

https://www.e-s-tel.com/web/image/product.template/19/image_1920?unique=c9c78e2

QSFP28, 100GBase-ZR4, 80 km, Ethernet, 100GBE, SM, LAN-WDM(4x), 0-70°C, LC, pull-tab, DDM, w/ FEC, 5.5W

0.00 0.0 USD 0.00

0.00 €

    This combination does not exist.

    Data rate: 100G
    Form Factor: QSFP28
    Reach (km): 80
    Media: SMF
    Temperature (C°): 0 to 70
    Power Consumption (W): 5,5
    Interface: LC
    FEC: Yes
    Rx Input (dBm): -28 to -7
    Tx Output (dBm): 2.0 to 6.5

    Features

    QSFP28 MSA Compliant

    4 Lan - WDM lanes MUX/ DEMUX Design



    Support 103.125 Gbps aggregate bit rate

    Up to 80 Km transmission on single mode fiber


    RoHS 2 Compliant

    Hot Pluggable 38 pin electrical interface


    4 x 25G electrical interface


    Single 3.3V power supply
