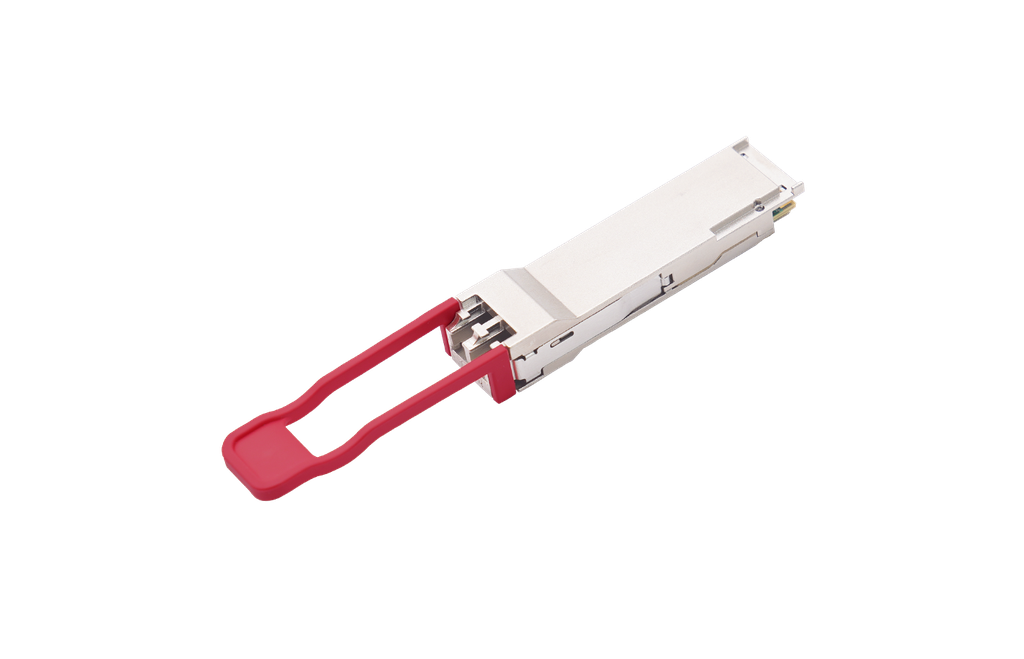

QSFP28, 100GBase-ER4 40 km | C-Temp (Dual Rate 100G / OTU4)

$ 0.00 $ 0.00

  • Data rate
  • Form Factor
  • Optical Specification
  • Reach (km)
  • Fiber Type
  • Operating Case Temperature
  • Maximum Power Consumption (W)
  • Optical Connector
  • FEC
  • Multirate Support
  • Wavelength / Wavelength Band
  • Optical Modulation
  • Digital Diagnostics — DOM/DDM
  • Supply Voltage
Data rate: 100G
Form Factor: QSFP28
Optical Specification: ER4
Reach (km): 40
Fiber Type: SMF
Operating Case Temperature: 0 to 70
Maximum Power Consumption (W): 5.5
Optical Connector: Duplex LC
FEC: No
Multirate Support: 100Gbe / OTU4
Wavelength / Wavelength Band: LAN-WDM - 1295.56/1300.05/1304.58/1309.14
Optical Modulation: NRZ
Digital Diagnostics — DOM/DDM: Yes
Supply Voltage: 3.3V

100G QSFP28
ER4 · 40 km

QSD28A6YB2CT_PT

ER4 optical connectivity for 100 Gigabit Ethernet (100GbE) and OTU4 in a QSFP28 form factor for single-mode fibre links up to 40 km. Select the host mode, remote optics and cabling to match your application.

Confirm host support, remote optics, cabling and FEC configuration before deployment.

Rate class
100G
Form factor
QSFP28
SMF reach
40 km
Optical connector
Duplex LC
Maximum power
≤ 5 W

ENGINEERED FOR YOUR NETWORK

100G capacity.
Reach up to 40 km.

ER4 optical connectivity for 100 Gigabit Ethernet (100GbE) and OTU4 in a QSFP28 form factor for single-mode fibre links up to 40 km. Select the host mode, remote optics and cabling to match your application.

This page covers QSD28A6YB2CT_PT. Confirm the exact ordering reference and current product documentation before qualification.

01 / FORM FACTOR

QSFP28

Select equipment with the correct cage, electrical interface and thermal provision.

02 / OPTICAL INTERFACE

ER4

Duplex LC interface for single-mode fibre.

03 / INTEGRATION

ER4

Confirm host support, remote optics, cabling and FEC configuration before deployment.

04 / QUALIFICATION

Confirm the complete link

Share the host model and software, fibre route, remote module and required quantity with ESTEL.

CONNECTIVITY AND APPLICATIONS

Connect with confidence.

Switch, router and optical network integration starts with a matched end-to-end link.

01 / OPTICAL LINK

100G connectivity

Connect compatible endpoints over the specified single-mode fibre interface. Confirm the optical budget, host mode and FEC at both ends.

02 / SYSTEM INTEGRATION

Specify the complete configuration

Confirm connector type, fibre mapping, optical budget, host configuration and remote optics before ordering.

Planning a different port mode or breakout? Ask ESTEL to confirm support for this exact ordering reference.

Ask engineering

TECHNICAL SPECIFICATIONS

Specifications for QSD28A6YB2CT_PT.

Product and optical

Product and optical
Ordering referenceQSD28A6YB2CT_PT
Application / protocol100 Gigabit Ethernet (100GbE) / OTN OTU4
Data rate100G
Form FactorQSFP28
Optical ConnectorDuplex LC
Fiber TypeSMF

Integration details

Integration details
Reach (km)40 km
Maximum Power Consumption (W)5 W
Operating Case Temperature0 to 70 °C
FECNo
Optical SpecificationER4

Values apply to this ordering reference; confirm the current revision with ESTEL.

DOCUMENTS AND QUALIFICATION

Get the evidence before you deploy.

Request documents for QSD28A6YB2CT_PT so the team can confirm the right revision and variant.

Product datasheet

Request the current datasheet and optical limits for this exact product.

Request datasheet

Integration review

Confirm the host, remote optics, cabling, FEC and thermal requirements.

Ask engineering

Qualification evidence

Ask for applicable compliance documents and evaluation information.

Ask engineering

COMMON QUESTIONS

Answers that help you specify the link.

Which product does this page cover?

QSFP28, 100GBase-ER4 40 km | C-Temp (Dual Rate 100G / OTU4) — ordering reference QSD28A6YB2CT_PT.

Does this reference support OTU4?

This is the dual-rate 100G / OTU4 reference. Confirm the selected protocol, host configuration and remote module before deployment.

What host settings should I confirm?

Confirm host support, remote optics, cabling and FEC configuration before deployment. Share the equipment model and software revision.

Which fibre and connector should I use?

Use Duplex LC with suitable single-mode fibre. Check the optical budget and fibre mapping for the complete route.

Can I use a breakout configuration?

Ask ESTEL to verify the available port modes and compatible remote optics for this exact product.

What should I include in my enquiry?

Share the host model, software, remote module, distance, fibre route, quantity and deployment date.
