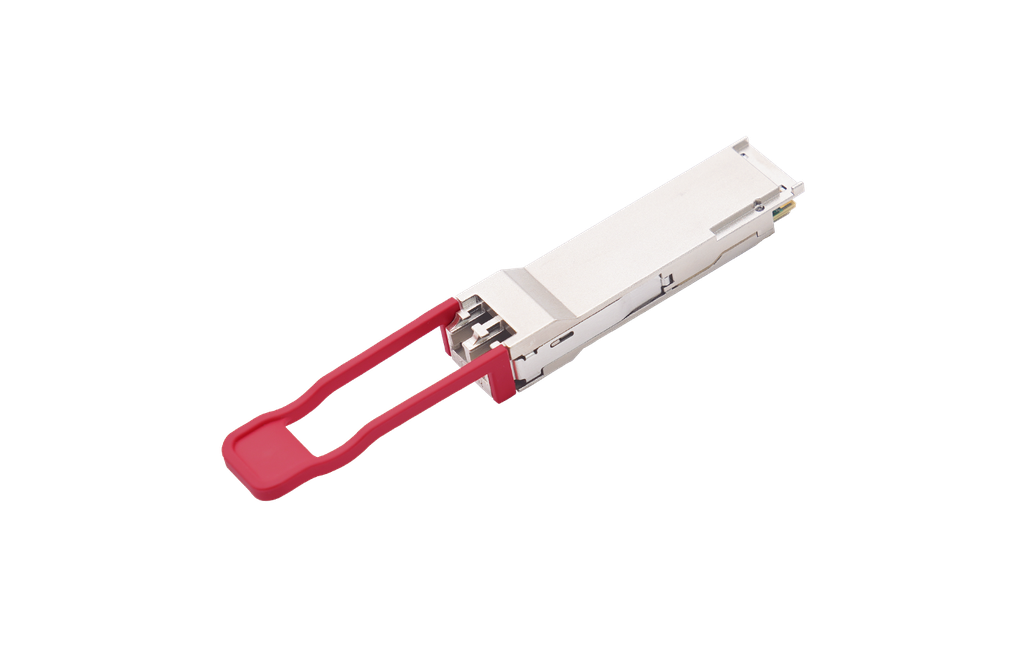

QSFP28, 100GBase-ER4 40 km | C-Temp

QSFP28, 100GBase-ER4, 40 km, Ethernet, 100GBE, SM, LAN-WDM(4x), 0-70°C, LC, pull-tab, DDM, 5W

0.00 0.00

  • Data rate
  • Form Factor
  • Transceivers
  • Reach (km)
  • Media
  • Temperature (C°)
  • Power Consumption (W)
  • Interface
  • FEC
  • Rx Input (dBm)
  • Tx Output (dBm)
  • Country of Origin
Data rate: 100G
Form Factor: QSFP28
Transceivers: ER4
Reach (km): 40
Media: SMF
Temperature (C°): 0 to 70
Power Consumption (W): 5
Interface: LC
FEC: No
Rx Input (dBm): -20.9 to -3.5
Tx Output (dBm): -2.9 to +2.9
Country of Origin: Belgium

Features

QSFP28 MSA Compliant


4 Lan - WDM lanes MUX/ DEMUX Design



LC Duplex connector


Up to 40 Km transmission on single mode fiber without FEC


RoHS 2 Compliant


Hot Pluggable 38 pin electrical interface


4 x 25G electrical interface


Single 3.3V power supply
