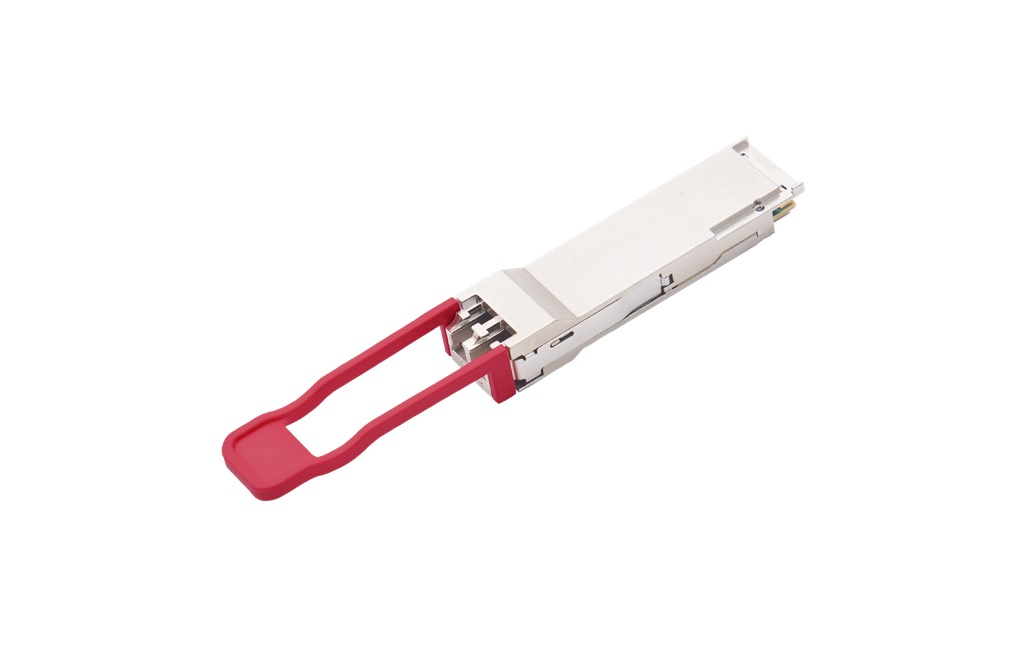

QSFP28, 100GBase-4WDM-40/ER4-Lite | C-Temp

https://www.e-s-tel.com/web/image/product.template/61/image_1920?unique=e2b6a58

QSFP28, ER4 Lite, 40 km, Ethernet, 100GBE, SM, LAN-WDM(4x), 0-70°C, LC, pull-tab, DDM

0.00 0.0 USD 0.00

0.00 €

    This combination does not exist.

    Data rate: 100G
    Form Factor: QSFP28
    Transceivers: 4WDM-40/ER4-Lite
    Reach (km): 40
    Media: SMF
    Temperature (C°): 0 to 70
    Power Consumption (W): 4.5
    Interface: LC
    FEC: Yes
    Rx Input (dBm): -14.6
    Tx Output (dBm): 0.5 to 6.5

    Features

    QSFP28 MSA Compliant


    4 Lan - WDM lanes MUX/ DEMUX Design



    Support 103.125 Gbps bit rate


    Up to 40 Km with FEC/30 km without FEC


    RoHS 2 Compliant


    Hot Pluggable 38 pin electrical interface


    4 x 25G electrical interface


    Single 3.3V power supply
