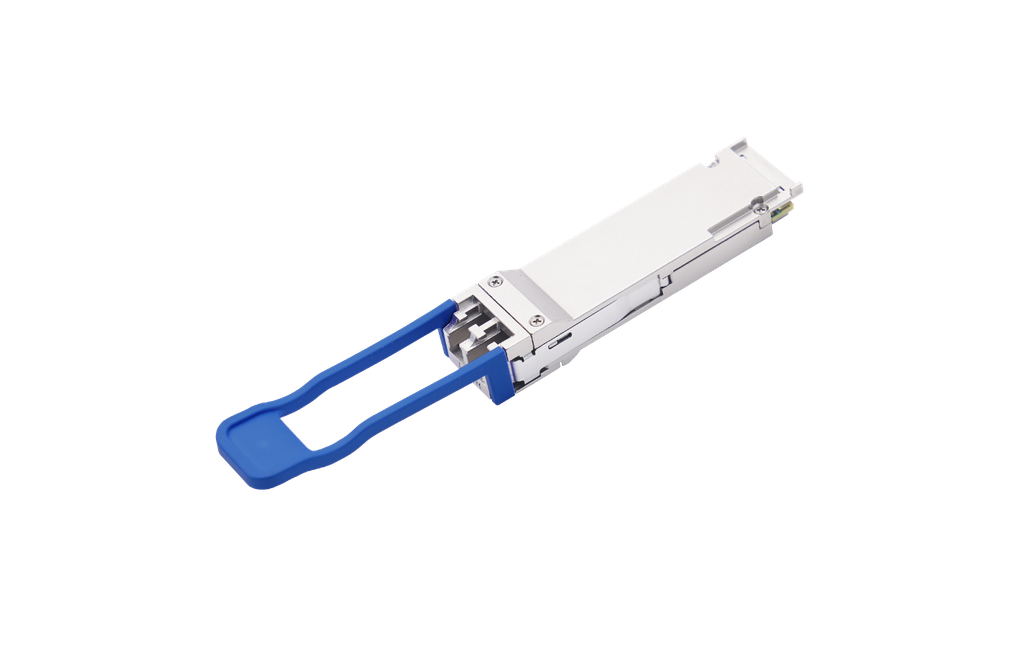

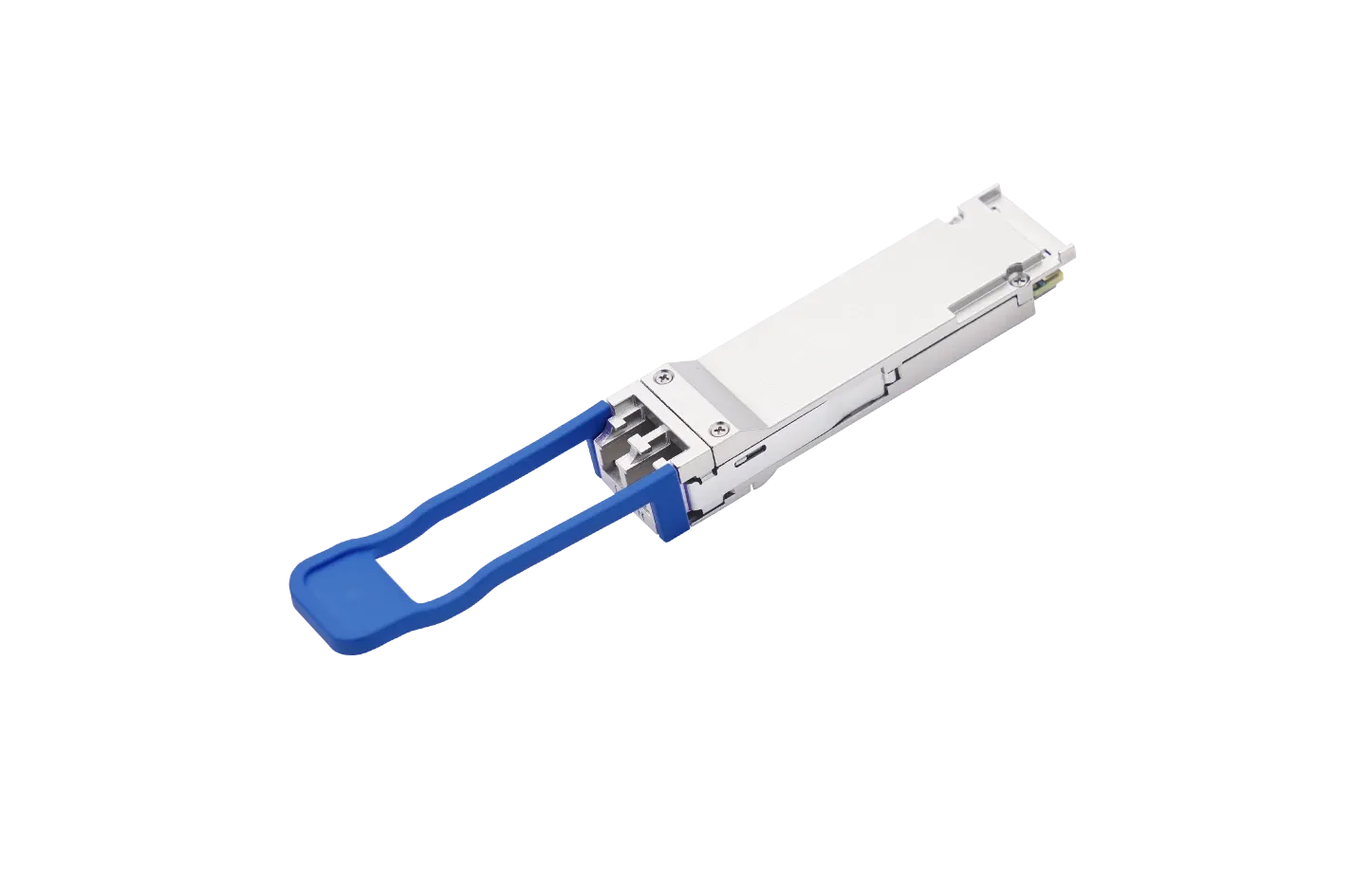

QSFP28, 100GBase-LR4 10 km | C-Temp
QSFP28, 100GBase-LR4, 10 km, Ethernet, 100GBE, SM, LAN-WDM(4x), 0-70°C, LC, pull-tab, DDM
| Data rate: 100G |
| Form Factor: QSFP28 |
| Transceivers: LR4 |
| Reach (km): 10 |
| Media: SMF |
| Temperature (C°): 0 to 70 |
| Power Consumption (W): 4 |
| Interface: LC |
| FEC: No |
| Rx Input (dBm): -8.6 |
| Tx Output (dBm): -1.3 to +4.5 |
Features
QSFP28 MSA Compliant
4 Lan - WDM lanes MUX/ DEMUX Design
Support 103.125 Gbps aggregate bit rate
Up to 10 Km transmission on single mode fiber
RoHS 2 Compliant
Hot Pluggable 38 pin electrical interface
4 x 25G electrical interface
Single 3.3V power supply
