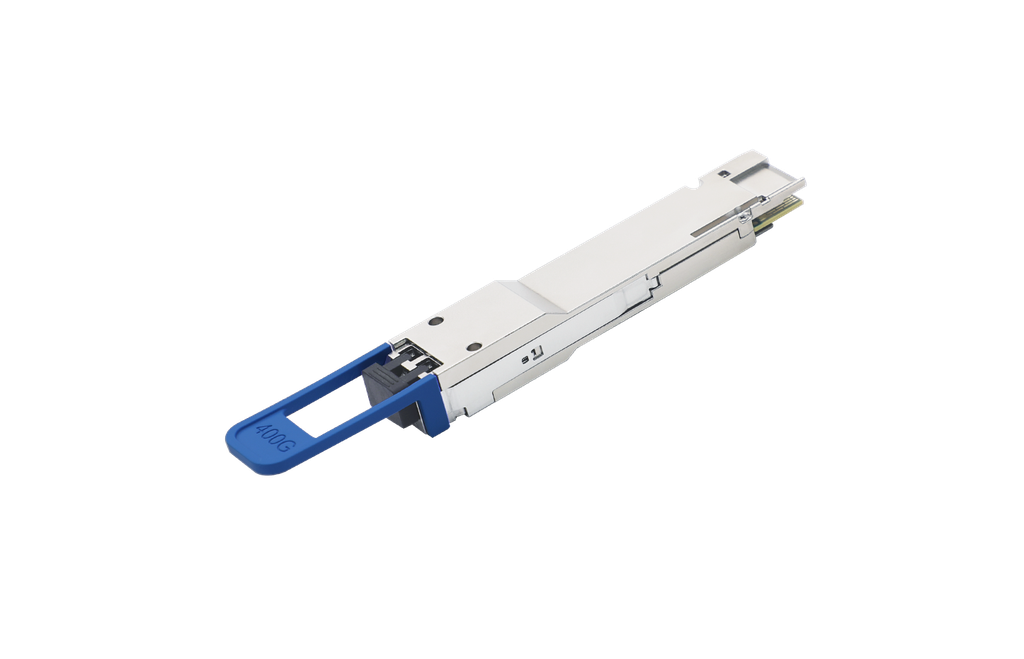

QSFP-DD 400GBase-LR4 10 km | C-Temp

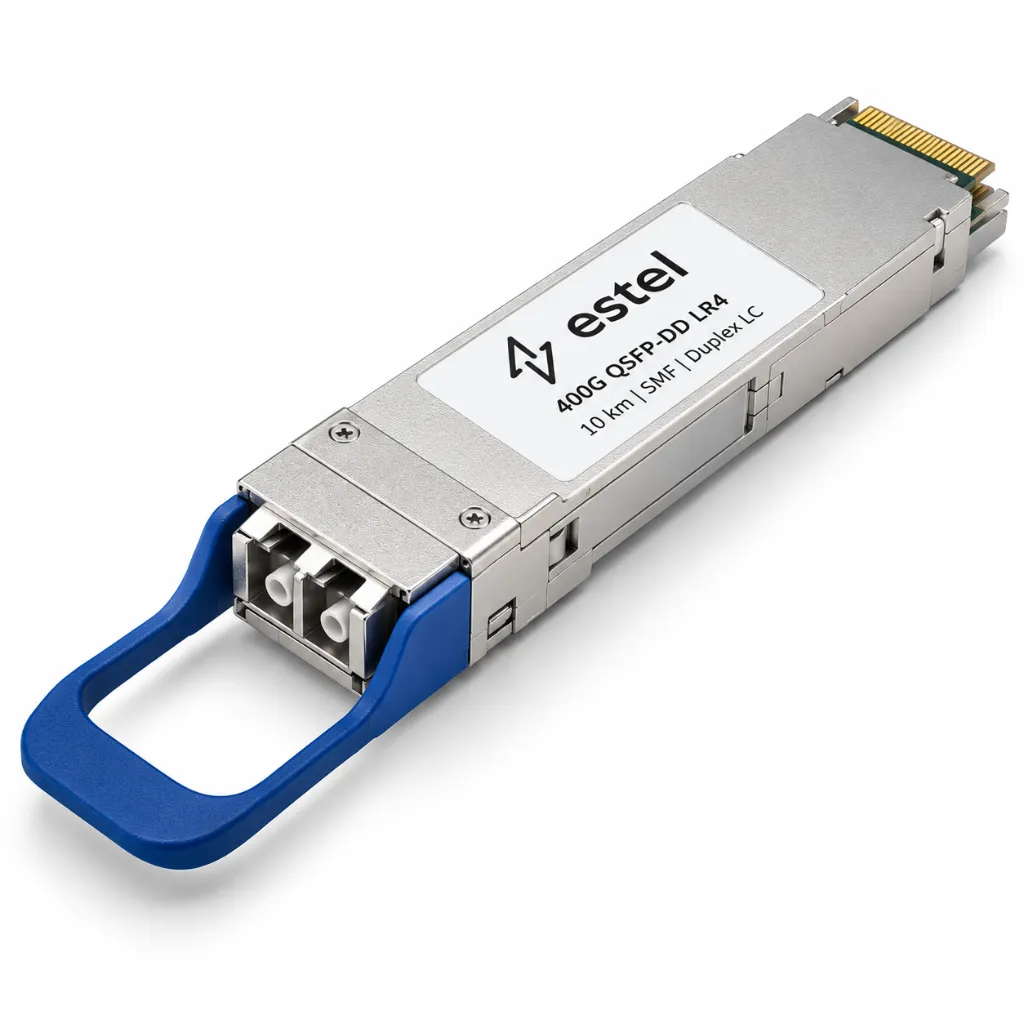

The ESTEL 400G QSFP-DD LR4 optical transceiver supports 400G Ethernet links over distances of up to 10 km on duplex single-mode fiber. Four CWDM optical lanes are multiplexed onto a single fiber pair, providing high-capacity connectivity through a Duplex LC connector. The module features an 8 × 50G PAM4 host electrical interface and digital diagnostic monitoring through CMIS.


$ 0.00 $ 0.00

  • Data rate
  • Form Factor
  • Optical Specification
  • Reach (km)
  • Fiber Type
  • Operating Case Temperature
  • Maximum Power Consumption (W)
  • Optical Connector
  • Wavelength / Wavelength Band
  • Optical Modulation
  • Module Architecture
  • Host Electrical Interface
  • Optical Lane Configuration
  • Digital Diagnostics — DOM/DDM
  • Management Interface
  • Supply Voltage
Add to cart
Request a quote
Data rate: 400G
Form Factor: QSFP-DD
Optical Specification: LR4
Reach (km): 10
Fiber Type: SMF
Operating Case Temperature: 0 to 70
Maximum Power Consumption (W): 8
Optical Connector: Duplex LC
Wavelength / Wavelength Band: CWDM:1271 / 1291 / 1311 / 1331 nm
Optical Modulation: PAM4
Module Architecture: Retimed
Host Electrical Interface: 8 x 50G PAM4 (400GAUI-8)
Optical Lane Configuration: 4 x 100G
Digital Diagnostics — DOM/DDM: Yes
Management Interface: CMIS
Supply Voltage: 3.3V

Features

QSFP-DD MSA Compliant

4 CWDM optical lanes with integrated MUX/DEMUX



400G Ethernet — 425 Gb/s aggregate line rate

Up to 10 Km transmission on single mode fiber


RoHS 2 Compliant

Hot Pluggable 76 pin electrical interface


8 x 50G PAM4 electrical interface


Single 3.3V power supply
